Working Near Welders

How the dangers of welding fume extend to non-welders

In 2017, the International Agency for Research on Cancer reclassified welding fume as a group 1 carcinogen. The same group as Asbestos and Silica. The risks posed by welding fume apply not only to the welders, but also to the non-welders who share the same workplace air as welders.

When you consider a welding fume particle that is 0.5 μm in size can take 2 days to reach the floor when released from a height of 1.5 metres, you begin to understand how long these carcinogenic particles can remain suspended in the air and why in many workshops there is a constant fume haze even in the morning before welding has started. This is vital to consider when sharing a work environment with welders, as the air could contain respiratory hazards long after welding has been completed.

Based on a recent survey conducted by AWS, only 10% of Australian and New Zealand workplaces use engineering controls (such as on-gun fume extraction or hooded capture LEV) to remove welding fume from the environment and 28% can still see and smell welding fume in the workshop before the welding starts in the morning. This is a concern when the same survey found that 80% of workers who work around welders are not wearing ANY form of respiratory personal protective equipment. It is an employer’s legal responsibility to reduce welding fume exposure to as low as reasonably practicable for all persons, not just the welder.

If your workplace has welders sharing the same building or space as non-welders, it is imperative to introduce welding fume controls that not only protect the welders but also stop the spread of welding fume to other areas and to introduce PPE to protect non-welders.

Local Exhaust Ventilation (LEV) and the use of Personal Protective Equipment (PPE) including Powered Air Purifying Respirators (PAPR) are highly effective product control options in limiting exposure to welding fume for non-welders.

Local Exhaust Ventilation (LEV) and the use of Personal Protective Equipment (PPE) including Powered Air Purifying Respirators (PAPR) are highly effective product control options in limiting exposure to welding fume for non-welders.

Important Note – Opening a roller door is not enough!

It should be noted that wind, a cross-breeze, or opening a roller door, should only be used for general comfort, not as an engineering control measure for atmospheric contaminants and fumes.

While this can help disperse welding fume in combination with other controls, it must never be used as a control by itself.

How the dangers of welding fume extend to non-welders

In 2017, the International Agency for Research on Cancer reclassified welding fume as a group 1 carcinogen. The same group as Asbestos and Silica. The risks posed by welding fume apply not only to the welders, but also to the non-welders who share the same workplace air as welders.

When you consider a welding fume particle that is 0.5 μm in size can take 2 days to reach the floor when released from a height of 1.5 metres, you begin to understand how long these carcinogenic particles can remain suspended in the air and why in many workshops there is a constant fume haze even in the morning before welding has started. This is vital to consider when sharing a work environment with welders, as the air could contain respiratory hazards long after welding has been completed.

Based on a recent survey conducted by AWS, only 10% of Australian and New Zealand workplaces use engineering controls (such as on-gun fume extraction or hooded capture LEV) to remove welding fume from the environment and 28% can still see and smell welding fume in the workshop before the welding starts in the morning. This is a concern when the same survey found that 80% of workers who work around welders are not wearing ANY form of respiratory personal protective equipment. It is an employer’s legal responsibility to reduce welding fume exposure to as low as reasonably practicable for all persons, not just the welder.

If your workplace has welders sharing the same building or space as non-welders, it is imperative to introduce welding fume controls that not only protect the welders but also stop the spread of welding fume to other areas and to introduce PPE to protect non-welders.

Local Exhaust Ventilation (LEV) and the use of Personal Protective Equipment (PPE) including Powered Air Purifying Respirators (PAPR) are highly effective product control options in limiting exposure to welding fume for non-welders.

Important Note – Opening a roller door is not enough!

It should be noted that wind, a cross-breeze, or opening a roller door, should only be used for general comfort, not as an engineering control measure for atmospheric contaminants and fumes.

While this can help disperse welding fume in combination with other controls, it must never be used as a control by itself.

Welding Fume Product Controls to Protect Non-Welders

Product controls are available in two main forms:

Local Exhaust Ventilation (LEV)

Personal Protective Equipment (PPE)

Below we look at the product options available.

Welding Fume Product Controls to Protect Non-Welders

Product controls are available in two main forms:

Personal Protective Equipment (PPE)

Local Exhaust Ventilation (LEV)

Below we look at the product options available.

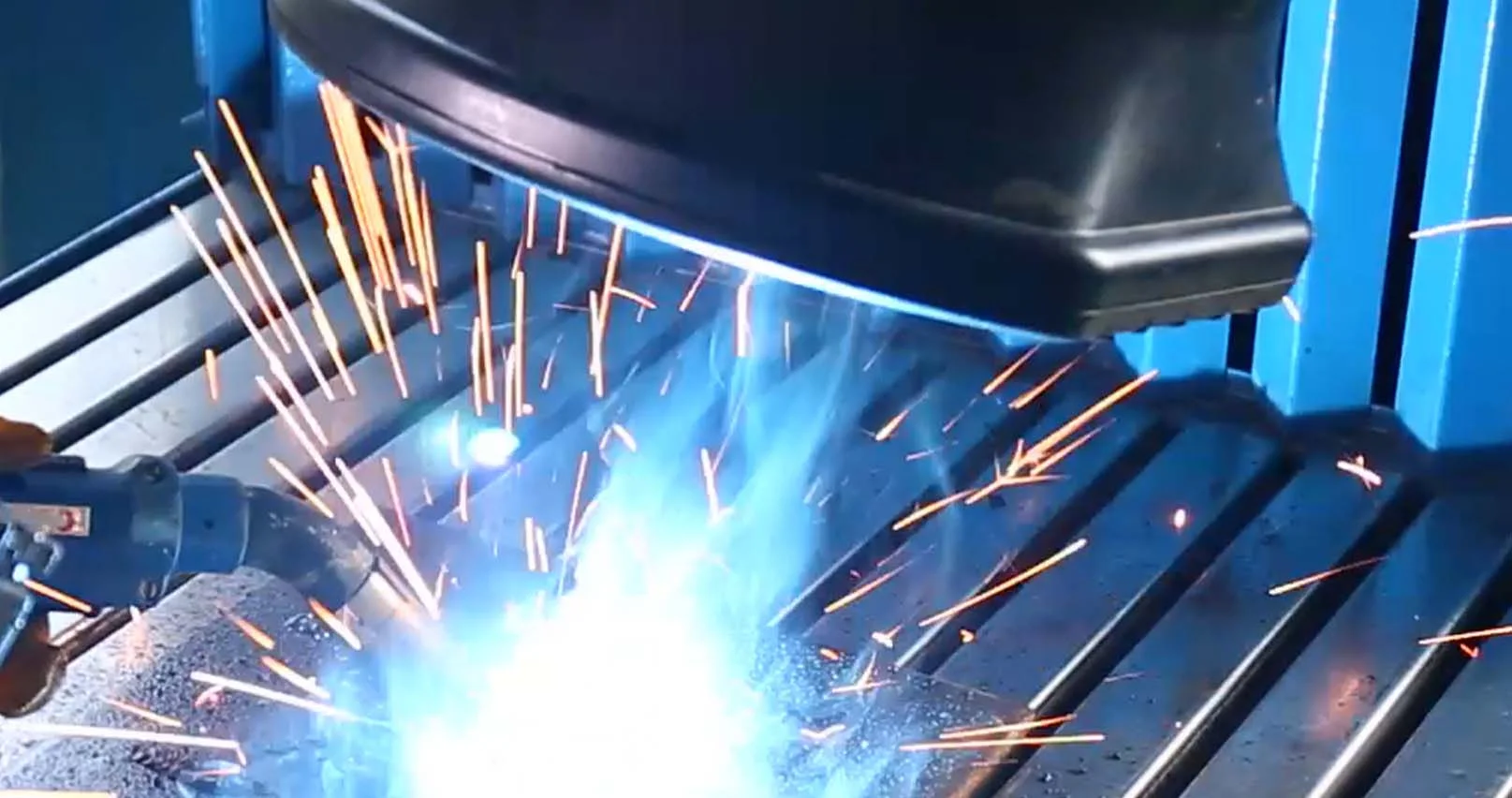

Local Exhaust Ventilation (LEV) - Welding Fume Extraction

LEV can assist in reducing exposure to welding fume and other airborne contaminants, not only for the welder, but also for those who work near welding operations. This is the key difference between LEV and Personal Protective Equipment (PPE). PPE protects the individual, while correctly located LEV can stop the spread of fume throughout the entire workplace. LEV options from AWS are available in two main forms: On-Gun Fume Extraction and Portable LEV Fume Extraction.

Need expert welding fume guidance?

Get in touch with AWS

On-Gun Welding Fume Extraction

On-Gun or On-Torch welding fume extraction is the only product control solution that removes welding fume from the environment and follows the welder as they move, making it an extremely practical welding fume control solution for shared workplaces.

Recent technological advancements from Translas have also meant that on gun torches can now be the same size and weight as normal welding guns and deliver high capture rates (up to 98%), while leaving the shielding gas completely unaffected.

On-gun fume extraction is a highly practical and effective solution to control welding fume in shared environments.

Learn more about Translas On Gun Welding Fume Extraction

On-Gun Welding Fume Extraction Technology

Portable LEV Welding Fume Extraction Systems

Portable LEV systems can be carried or rolled around the workplace and positioned where required and are ideal for situations where workplaces need to stop the spread of welding fume throughout the work environment. Portable LEV systems can be an extremely effective control for most welding applications, where the welder does not move away from the extraction point.

Learn more about Portable LEV Welding Fume Extractors

Portable LEV Fume Extraction Systems

Personal Protective Equipment (PPE)

AWS offers a range of 3M M-Series Face Shields with Adflo Powered Air Respiratory Protection, to protect non-welders working against welding fume.

M-Series Visors with Powered Air Purifying Respirators (PAPR)

Lightweight, compact, and well balanced, the 3M™ Versaflo™ M-Series Face Shields with the award winning Adflo powered air purifying respirator combine integrated face and respiratory protection with optional hearing and head protection: all conforming to the relevant Australian and New Zealand standards.

Experience constant mobile respiratory protection that goes where you go.

View the range of M-Series with the Adflo Welding Fume PAPR

M-Series with the Adflo Welding Fume PAPR

Half Mask Respirators

Disposable or reusable P2 rated half mask respirators can be worn for protection against welding fume. Users must be fit tested (annually is recommended) and clean shaven (if relevant) to ensure an effective negative pressure seal.

When compared to disposable and reusable half-face mask respiratory protection, PAPRs provide superior respiratory protection and comfort and do not require fit testing or a complete clean-shaven condition.

View the range of Disposable Respirators and Reusable Respirators

M-Series Visors with Powered Air Purifying Respirators (PAPR)

Lightweight, compact, and well balanced, the 3M™ Versaflo™ M-Series Face Shields with the award winning Adflo powered air purifying respirator combine integrated face and respiratory protection with optional hearing and head protection: all conforming to the relevant Australian and New Zealand standards.

Experience constant mobile respiratory protection that goes where you go.

View the range of M-Series with the Adflo Welding Fume PAPR

M-Series with the Adflo Welding Fume PAPR

Need expert welding fume guidance?

Get in touch with AWS

Personal Protective Equipment (PPE)

PPE for respiratory protection from welding fume for non-welders is available from AWS in two main forms:

M-Series Visors with Powered Air Purifying Respirators (PAPR)

Lightweight, compact, and well balanced, the 3M™ Versaflo™ M-Series Face Shields with the award winning Adflo powered air purifying respirator combine integrated face and respiratory protection with optional hearing and head protection: all conforming to the relevant Australian and New Zealand standards.

Experience constant mobile respiratory protection that goes where you go.

View the range of M-Series with the Adflo Welding Fume PAPR

M-Series with the Adflo Welding Fume PAPR

Half mask respirators

Disposable or reusable P2 rated half mask respirators can be worn for protection against welding fume. Users must be fit tested (annually is recommended) and clean shaven (if relevant) to ensure an effective negative pressure seal.

When compared to disposable and reusable half-face mask respiratory protection, PAPRs provide superior respiratory protection and comfort and do not require fit testing or a complete clean-shaven condition.

View the range of Disposable Respirators and Reusable Respirators

Need expert welding fume guidance?

Get in touch with AWS

Professional Indoor Air Cleaners

Professional Indoor Air Cleaners Many offices and indoor spaces are situated next to or above where welding takes place. If you can smell welding fume, you are being exposed to carcinogenic particles. Welding fume can obviously build up in indoor settings and indoor air quality can be 7 times more polluted than outdoor environments.

Professional Air Cleaners silently clean indoor air with HEPA rated filtration. The same level of filtration used in clean rooms, the medical industry, and aviation.

Professional Air Cleaners can also filter bushfire smoke, viruses, bacteria, pollen, and odours from the air. A study by NASA 1 determined that HEPA filters are effective in capturing nanometre diameter particles, such as coronavirus.

The filters in an air conditioning system are only designed to protect the motor whereas professional Indoor Air Cleaners are purpose built to clean the air in offices and larger indoor spaces.

Clean your indoor air and help protect your workforce from welding fume and other potentially harmful substances in the workplace air.

David Chippendale

David has worked in the welding safety industry for over 17 years and has authored numerous Welding Fume Safety White Papers, Welding Industry Reports, and Welding Fume Control Frameworks. He is a member of the Welding Safety Council made up of industry and legislative safety authorities, sits on the advisory group for the NSW Centre for Work Health and Safety in quantifying and assessing the burden of harm associated with welding fumes, and heads up the sales, marketing, and technical teams at AWS.

Terry Gorman

Terry is a Certified Occupational Hygienist and Fellow of the Australian Institute of Occupational Hygienists (AIOH) who has worked in the field of workplace safety for over 30 years and specialised in respiratory protection for over 20 years. He is a current member of the Australian Standard Committee responsible for respiratory protection as well as on the Eye/Face Protection Standards Committee. He currently represents Standards Australia on the International Standards Organisation (ISO) Committee TC94/SC15, a team of international specialists creating a set of global respiratory standards that are intended to become the Australian Respiratory Protection Standards when complete.

Learn More About AWS

Authors:

David Chippendale

David has worked in the welding safety industry for over 20 years and has authored numerous Welding Fume Safety White Papers, Welding Industry Reports, and Welding Fume Control Frameworks. He is a member of the Welding Safety Council made up of industry and legislative safety authorities, sat on the advisory group for the NSW Centre for Work Health and Safety in quantifying and assessing the burden of harm associated with welding fumes, and heads up the marketing, business support, and technical sales teams at AWS.

Terry Gorman

Terry is a Certified Occupational Hygienist and Fellow of the Australian Institute of Occupational Hygienists (AIOH) who has worked in the field of workplace safety for over 30 years and specialised in respiratory protection for over 20 years. He is a current member of the Australian Standard Committee responsible for respiratory protection as well as on the Eye/Face Protection Standards Committee. He currently represents Standards Australia on the International Standards Organisation (ISO) Committee TC94/SC15, a team of international specialists creating a set of global respiratory standards that are intended to become the Australian Respiratory Protection Standards when complete.
